BA/1KSWP | BAPI | Temperature Sensors & Transmitters

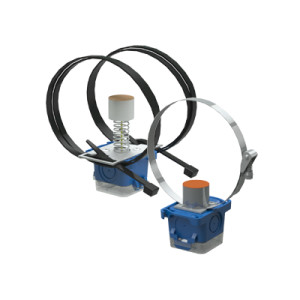

STRAP-ON 1000 OHM 385 RTD CLAMP ON ALUM BOX
Brand:BAPI
MPN:BA/1KSWP
SKU:BA/1KSWP
product specifications
Type
RTD
Probe Length
None
Sensor Element
1K Platinum RTD 385
Enclosure Rating
NEMA 3R
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.36°F (±0.2°C); RTD: ±0.55°F (±0.30°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III
RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
Temperature Range:32° to 158°F (-0° to 70°C)
Thermistor:
Temperature Output: Resistance
Accuracy: ± 0.36°F (± 0.2°C)
Stability: < 0.036°F/Year (< 0.02°C/Year)
Heat Dissipation: 2.7 mW/°C
Temperature Drift: < 0.02°C/Year
Probe Range: -40 to 221°F (-40 to 105°C)
RTD:
Stability: ± 0.25°F (± 0.14°C)
Self Heating: 0.4 °C/mW @0°C
Probe Range: -40 to 221°F (-40 to 105°C)
Nickel (Ni): 1000Ω @ 70°F, JCI curve
Ni Probe Range: -40 to 221°F (-40 to 105°C)
Enclosure Rating:
JB: NEMA 1, 2x4 steel handy box
BB4: NEMA 3R, BAPI Box 4 IP44 nylon and plastic enclosure
Mounting: Straps or Clamps to pipe
Wiring Terminations: 22 AWG wire, etched teflon leads
Weight: JB, BB4: 0.75 lb (0.34 Kg); BB, BB2: 1.0 lb (0.45 Kg)
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- Strap-on or clamp-on models
- Lifetime limited sensor warranty
- Wide selection of mounting styles
more information & related documents
Series Description
The BAPI BA Strap-On Temperature Thermistor and RTD Sensors are designed specifically for HVAC systems to monitor water temperature in retrofit or filled pipe applications. They fit around the outside of a pipe and measure the water temperature by sensing the surface temperature of the pipe. They come in thermistor and RTD sensors and feature etched teflon leadwires to perform under real world conditions.
Kele Description
STRAP-ON 1000 OHM 385 RTD CLAMP ON ALUM BOX
Manufacturer
BAPI
Related Documents
BAPI strap on datasheet
